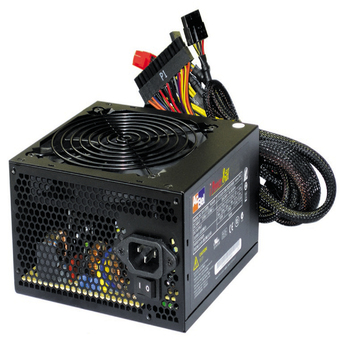

NGUỒN ACBEL CE2 400W

Name: NGUỒN ACBEL CE2 400W
Brand: ACBEL
SKU: 18123
Price: 600000 VND
Availability: InStock

600,000

ĐẶT HÀNG

Giao hàng tận nơi

Thanh toán khi nhận hàng

24 tháng bằng hóa đơn mua hàng

INPUT SPEC.
Input Voltage Range	220~230Vac
Input Frequency Range	50Hz
Leakage Current	3.5mA@230V/50Hz
AC Input Current	6A@230V
EMI/RFI	CISPR 22 at 230Vac/50Hz

OUTPUT SPEC.
Rated Power	350W
Max. Power	400W
Efficiency	75% above@230Vac
OVP	+3.3V:4.5V, +5V:7V, +12V1: 16V, +12V2: 16V
SCP	Latch off all main outputs reset by cycling on/off control or AC power
OPP	385W~490W (110%~140%)

GENERAL SPEC.
Hold-up Time	16ms@max. load 230Vac/50Hz
Dimensions	150 x 140 x 86 (mm)
MTBF	100Khrs
Output Rise Time	0.2~20ms
PG Signal Rise Time	10ms max.

ENVIRONMENTAL SPEC.
Operating Temperature	10 ~ 45°C
Storage Temperature	-40 ~ 70°C

DC OUTPUT

Bảo hành	24 tháng
VAT	Đã bao gồm VAT
