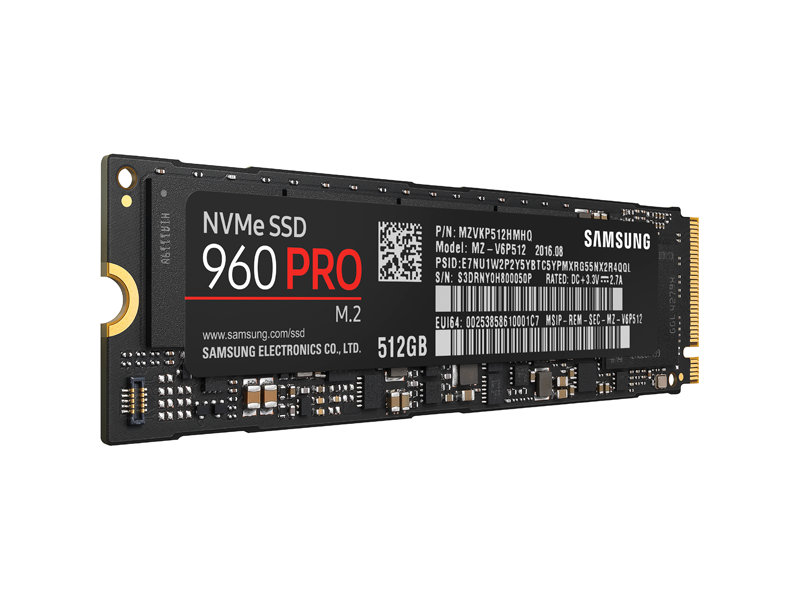

Model Code (Capacity)1)
-
MZ-V6P512 (512 GB)
-
MZ-V6P1T0 (1024 GB)
-
MZ-V6P2T0 (2048 GB)
General Feature
-
APPLICATION
Client PCs
-
FORM FACTOR
M.2
-
INTERFACE
PCIe 3.0 x4, NVMe 1.2
-
DIMENSION (WxHxD)
Max. 80.15 x 22.15 x 2.38 (mm)
-
WEIGHT
512 GB: Max 8.3g
1024 GB: Max 8.5g
2048 GB: Max 9g -
STORAGE MEMORY
Samsung V-NAND
-
CONTROLLER
Samsung Polaris controller
-
CACHE MEMORY
512 MB Low Power DDR3 (512 GB)
1 GB Low Power DDR3 (1024 GB)
2 GB Low Power DDR3 (2048 GB)
Special Feature
-
TRIM SUPPORT
TRIM Supported
-
S.M.A.R.T SUPPORT
S.M.A.R.T Supported
-
GC (GARBAGE COLLECTION)
Auto Garbage Collection Algorithm
-
ENCRYPTION SUPPORT
AES 256-bit for User Data Encryption,
TCG Opal -
WWN SUPPORT
N/A
-
DEVICE SLEEP MODE SUPPORT
512 GB: 5 mW (L1.2)
1024 GB: 5 mW (L1.2)
2048 GB: 8 mW (L1.8)
Performance2)
-
SEQUENTIAL READ
Up to 3,500 MB/sec
-
SEQUENTIAL WRITE
Up to 2,100 MB/sec
-
RANDOM READ (4KB, QD32)
512 GB: Up to 330,000 IOPS (Thread 4)
1024 GB: Up to 440,000 IOPS (Thread 4)
2048 GB: Up to 440,000 IOPS (Thread 4) -
RANDOM WRITE (4KB, QD32)
512 GB: Up to 330,000 IOPS (Thread 4)
1024 GB: Up to 360,000 IOPS (Thread 4)
2048 GB: Up to 360,000 IOPS (Thread 4) -
RANDOM READ (4KB, QD1)
Up to 14,000 IOPS (Thread 1)
-
RANDOM WRITE (4KB, QD1)
Up to 50,000 IOPS (Thread 1)
Environment
-
AVERAGE POWER CONSUMPTION
(SYSTEM LEVEL)3)Typ. 5.1 Watts (512 GB)
Typ. 5.3 Watts (1024 GB)
Typ. 5.8 Watts (2048 GB) -
POWER CONSUMPTION (IDLE)3)
40mW
-
RELIABILITY (MTBF)
1.5 Million Hours Reliability (MTBF)
-
OPERATING TEMPERATURE
0°C to 70°C (Measured by SMART Temperature. Proper airflow recommended)
-
SHOCK
1500G, duration 0.5m sec, 3 axis
Accessories
-
INSTALLATION KIT
N/A
Software
-
MANAGEMENT SW
Magician Software for SSD management
Warranty
-
MZ-V6P512 (512 GB)
5 Years or 400 TBW
-
MZ-V6P1T0 (1024 GB)
5 Years or 800 TBW
-
MZ-V6P2T0 (2048 GB)
5 Years or 1200 TBW
